Helicoil Metric Kit

Heli-Coil has all you need in Metric thread repair items. Available from stock are Metric Coarse kits in sizes M3 through M20 and Metric Fine kits in sizes M8 through M20. All Metric kits contain a Heli-Coil tap, installation tool, a quantity of inserts and complete instructions.

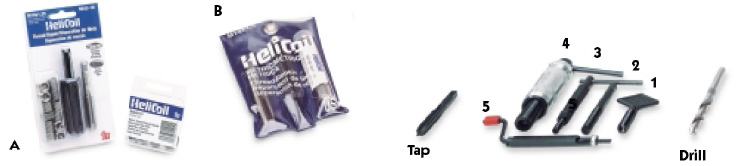

METRIC COARSE Kit Contents and Replacement Parts DRILL SIZE THREAD SIZE+LENGTH KIT PART NO. KIT PKG. TYPE INSERTS PER KIT TAP PART NO. INSTALLATION TOOL PART NO. TOOL TYPE PACKAGED INSERT PART NO. PACKAGED INSERT QTY. M3x0.5 x4.5mm 5546-3 B 12 2087-3 7751-3 5 R1084-3 12 1/8 M4x0.7x0.6mm 5546-4 A 12 2087-4 3747-4 3 R1084-4 12 11/64 M5x0.8x7.5mm*+ 5546-5 A 12 2087-5 3747-5 3 R1084-5 12 13/64 M6x1x9.0mm*+ 5546-6 A 12 2087-6 3747-6 3 R1084-6 12 1/4 M7x1x10.5mm 5546-7 A 12 2087-7 3747-7 2 R1084-7 12 9/32 M8x1.25x12.0mm*+ 5546-8 A 12 2087-8 8747-8 2 R1084-8 12 21/64 M9x1.25x13.5mm 5546-9 A 12 2087-9 8747-9 2 R1084-9 12 23/64 M10x1.5x15.0mm* 5546-10 A 12 2087-10 8747-10 2 R1084-10 12 13/32 M11x1.5x16.5mm 5546-11 A 6 2087-11 8747-11 3 R1084-11 6 29/64 M12x1.75x18.0mm 5546-12 A 6 2087-12 8747-12 2 R1084-12 6 31/64 M14x2x21.0mm 5546-14 B 6 2087-14 3747-14 2 R1084-14 6 37/64 M16x2x24.0mm 5546-16 B 6 2087-16 3747-16 2 R1084-16 6 21/32 M18x2.5x27.0mm 5546-18 B 6 2087-18 3747-18 2 R1084-18 6 47/64 M20x2.5x30.0mm 5546-20 B 4 2087-20 3747-20 2 R1084-20 6 13/16

*Sizes included in Master Thread Repair Set - Part No. 5626-150 +Sizes included in Master Thread Repair Set - Part No. 5626-120

METRIC FINE Kit Contents and Replacement Parts DRILL SIZE THREAD SIZE+LENGTH KIT PART NO. KIT PKG. TYPE INSERTS PER KIT TAP PART NO. INSTALLATION TOOL PART NO. TOOL TYPE PACKAGED INSERT PART NO. PACKAGED INSERT QTY. M8x1x12.0mm 5542-8 A 12 573-8 4835-8 3 R4255-8 12 21/64 M10x1x15.0mm 5542-10 A 12 573-10 4835-10 3 R4255-10 12 13/32 M11x1x16.5mm 5542-11 A 6 573-11 4835-11 3 R4255-11 6 7/16 M10x1.25x15.0mm+ 5543-10 A 12 575-10 8640-10 3 R4649-10 12 13/32 M11x1.25x16.5mm 5543-11 A 6 4944-11 8640-11 3 R4649-11 6 29/64 M12x1.25x18.0 5543-12 A 6 4944-12 8640-12 3 R4649-12 6 31/64 M12x1.5x18.0mm 5544-12 A 6 4976-12 8973-12 3 R3745-12 6 31/64 M14x1.5x21.0mm 5544-14 B 6 4976-14 8973-14 3 R3745-14 6 9/16 M16x1.5x24.0mm 5544-16 B 6 4976-16 8973-16 3 R3745-16 6 21/32

+Sizes included in Master Thread Repair Set - Part No. 5626-125

Metric Master Thread Repair Sets

Two sets are available in metric sizes. The metric coarse set contains sizes M5, M6, M8 and M10*1.5 and the metric fine set contain sizes M5, M6, M8 and M10*1.5.

Thread Size+Length Packaged Insert Part No. INSERT QUANTITY TAP PART NO. INSTALLATION TOOL PART NO. DRILL SIZE PART NO. 5626-150 - METRIC COARSE CONTENTS M5x0.8x7.5mm R1084-5 12 570-5 3747-5 13/64 M6x1x9.0mm R1084-6 12 570-6 3747-6 1/4 M8x1.25x12.0mm R1084-8 12 570-8 8747-8 21/64 M10x1.5x15.0mm R1084-10 12 570-10 8747-10 13/32 PART NO. 5626-125 - METRIC FINE CONTENTS M5x0.8x7.5mm R1084-5 12 570-5 3747-5 13/64 M6x1x9.0mm R1084-6 12 570-6 3747-6 1/4 M8x1.25x12.0mm R1084-8 12 570-8 3747-8 21/64 M10x1.25x15.0mm R4649-10 12 575-10 8640-10 13/32 helicoil, ,helicoil kit, helicoil tool kit ,helicoil thread repair kit , thread repair kit, helicoil tool kit , helicoil tool holder, helicoil thread repair, helicoil & tools, tool kit, helicoil thread repair insert ,thread repair , helicoil metric kit , helicoil inch kit, helicoil unc unf kit , helicoil bsw kit , helicoil bsf kit , helicoil bspf kit , helicoil bsf kit , helicoil npt kit , helicoil bspt kit , helicoil unef kit, helicoil unjf kit, helicoil unjc kit , helicoil mj kit , helicoil mjf kit
